HIS 7970 IceQ X² GHz Edition 3GB GDDR5 PCI-E DVI/HDMI/2xMini DP (iPower)

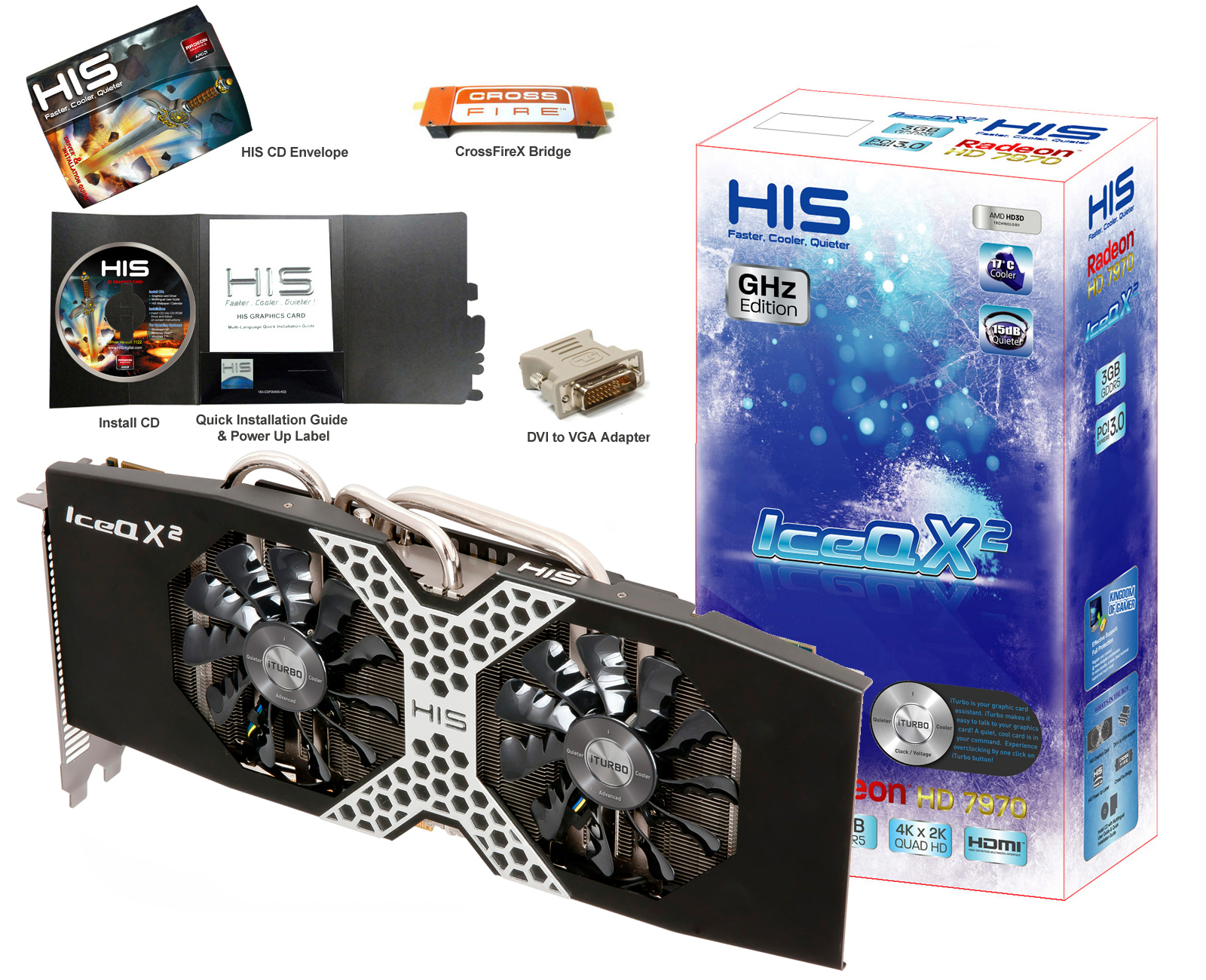

  • H797QMC3G2M_all_1600.jpg

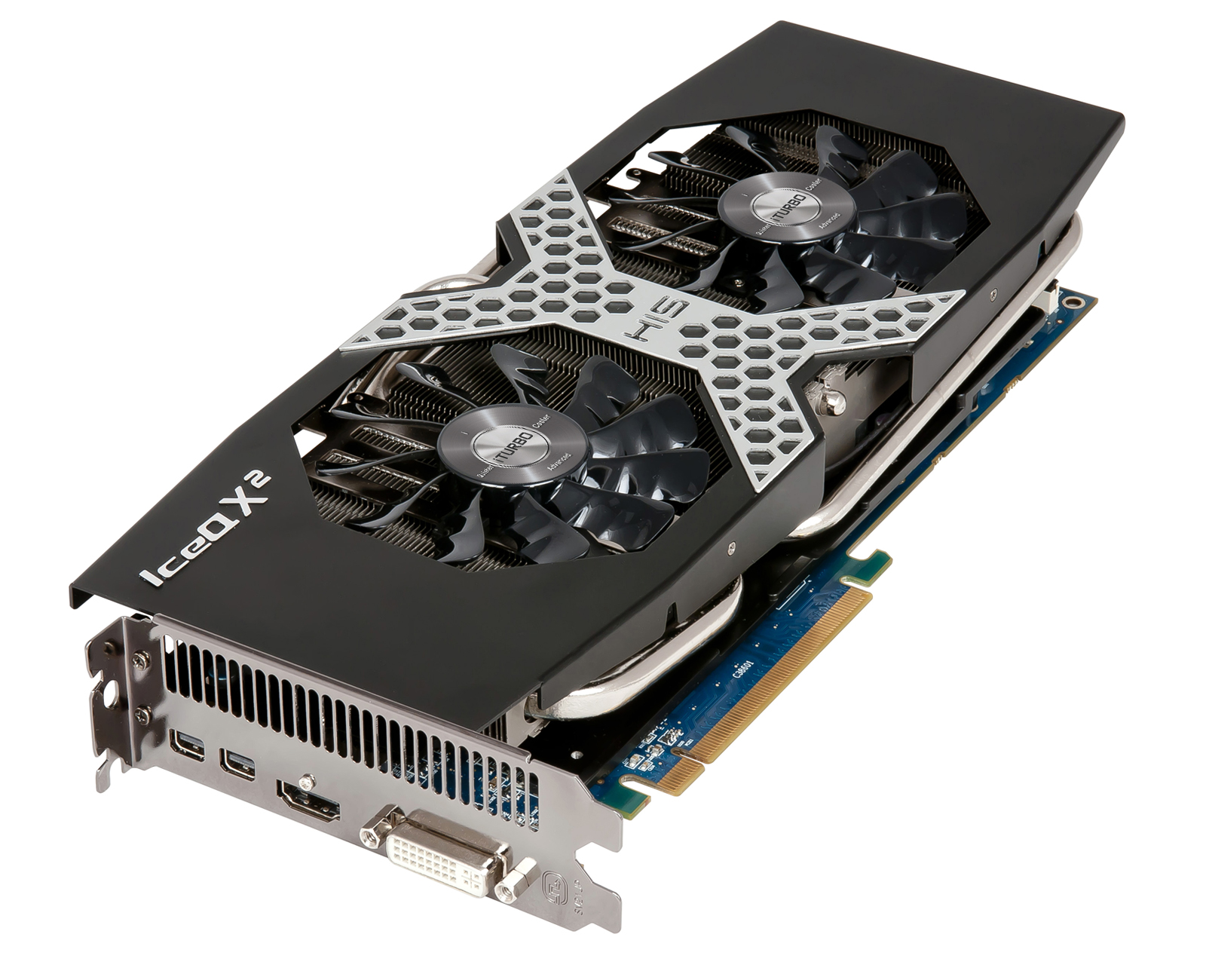

  • H797QM3G2M_01_1600[1].jpg

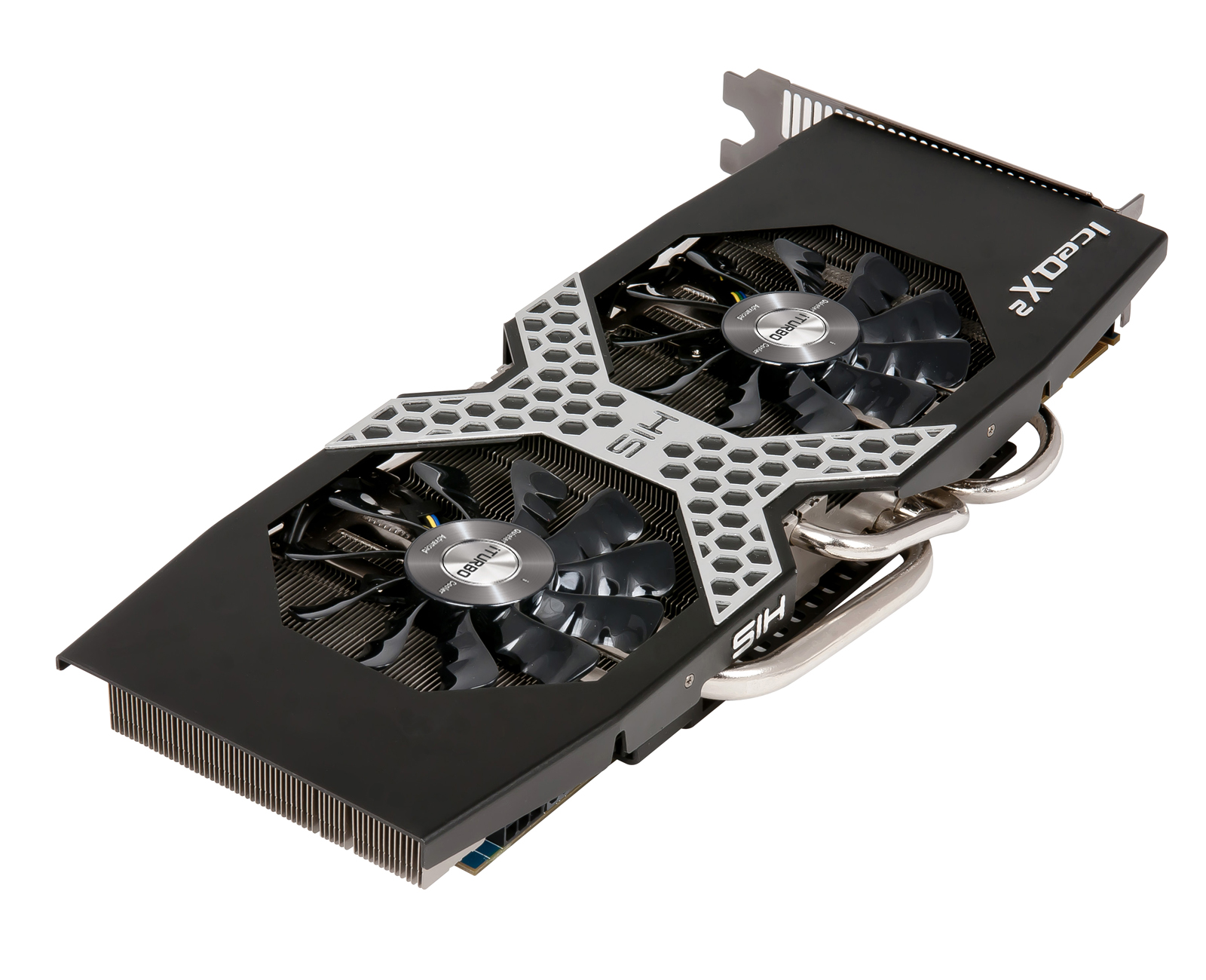

  • H797QM3G2M_02_1600[1].jpg

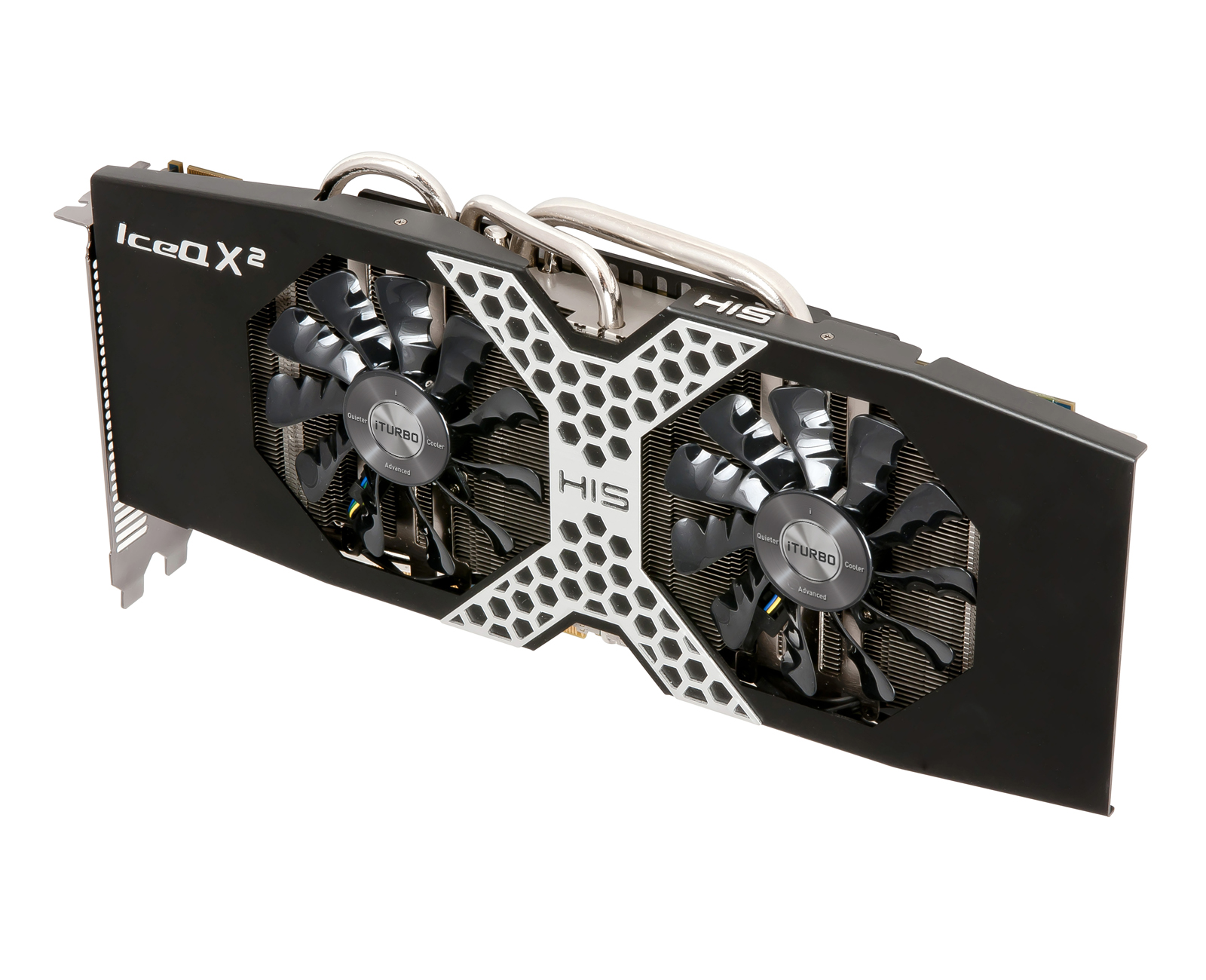

  • H797QM3G2M_04_1600[2].jpg

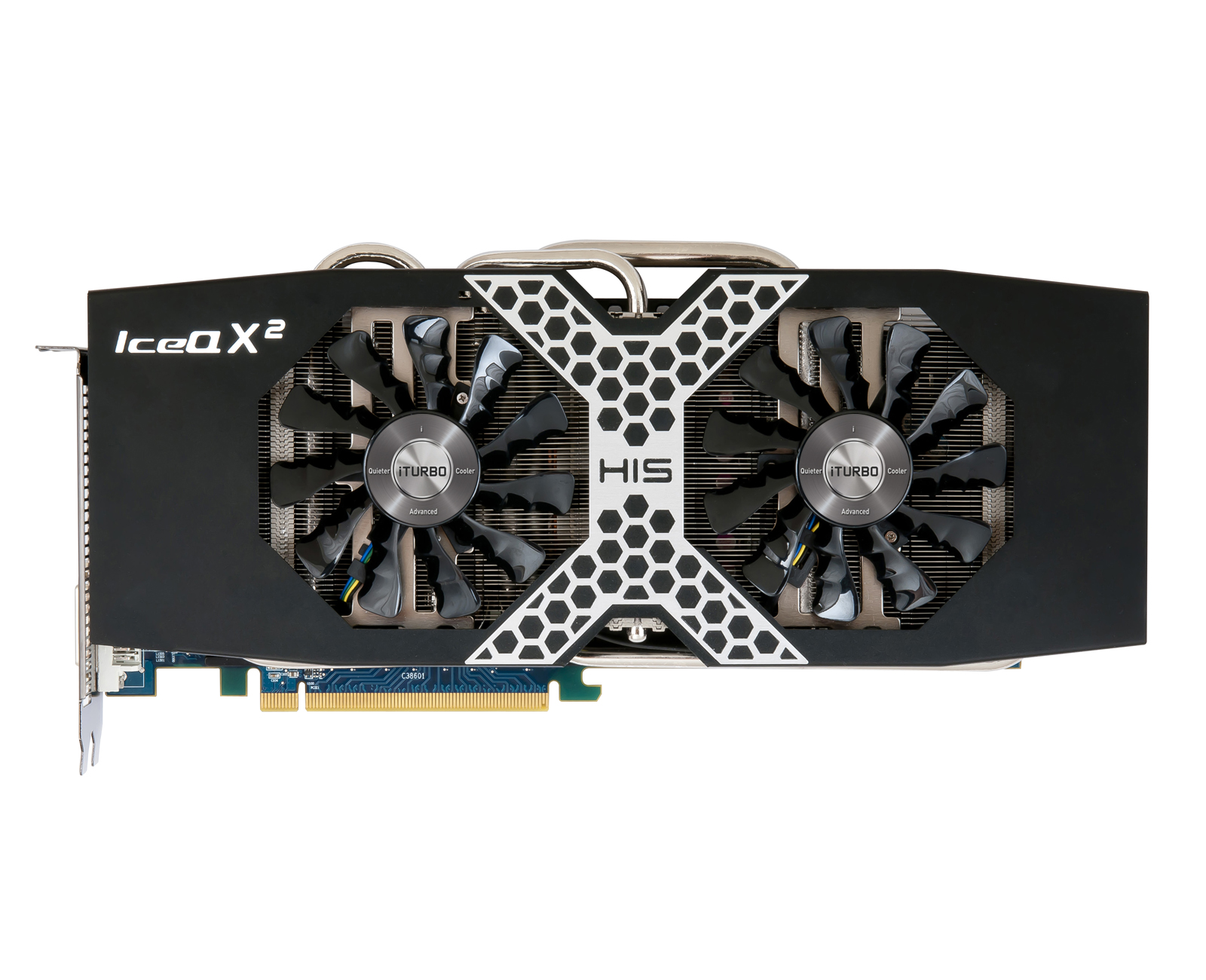

  • H797QM3G2M_05_1600[2].jpg

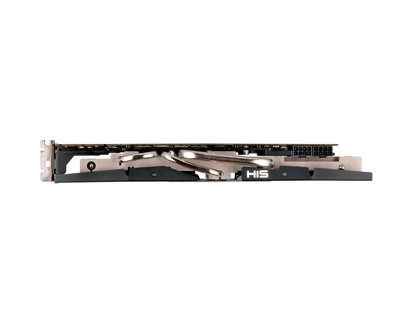

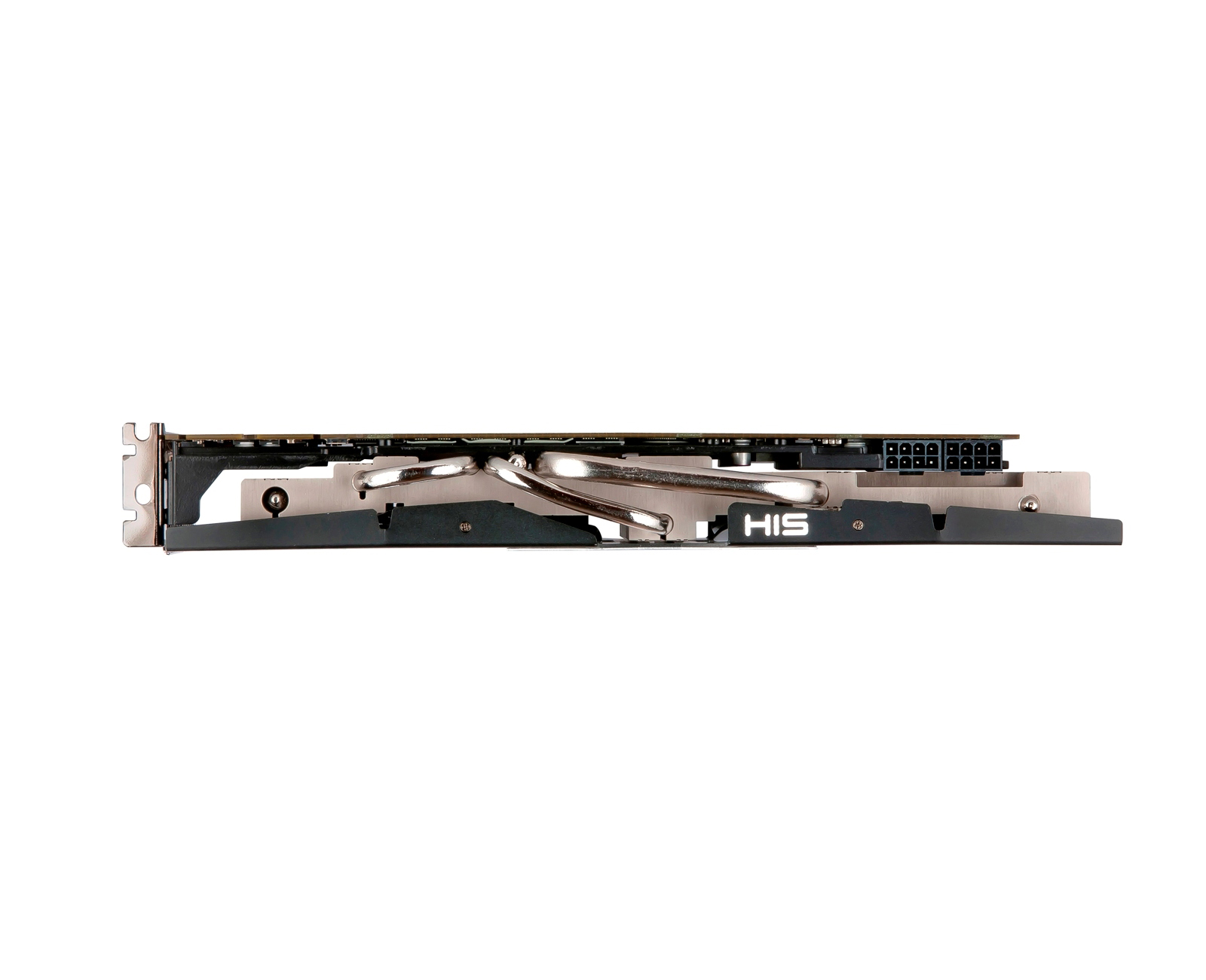

  • H797QMC3G2M_07_1600.jpg

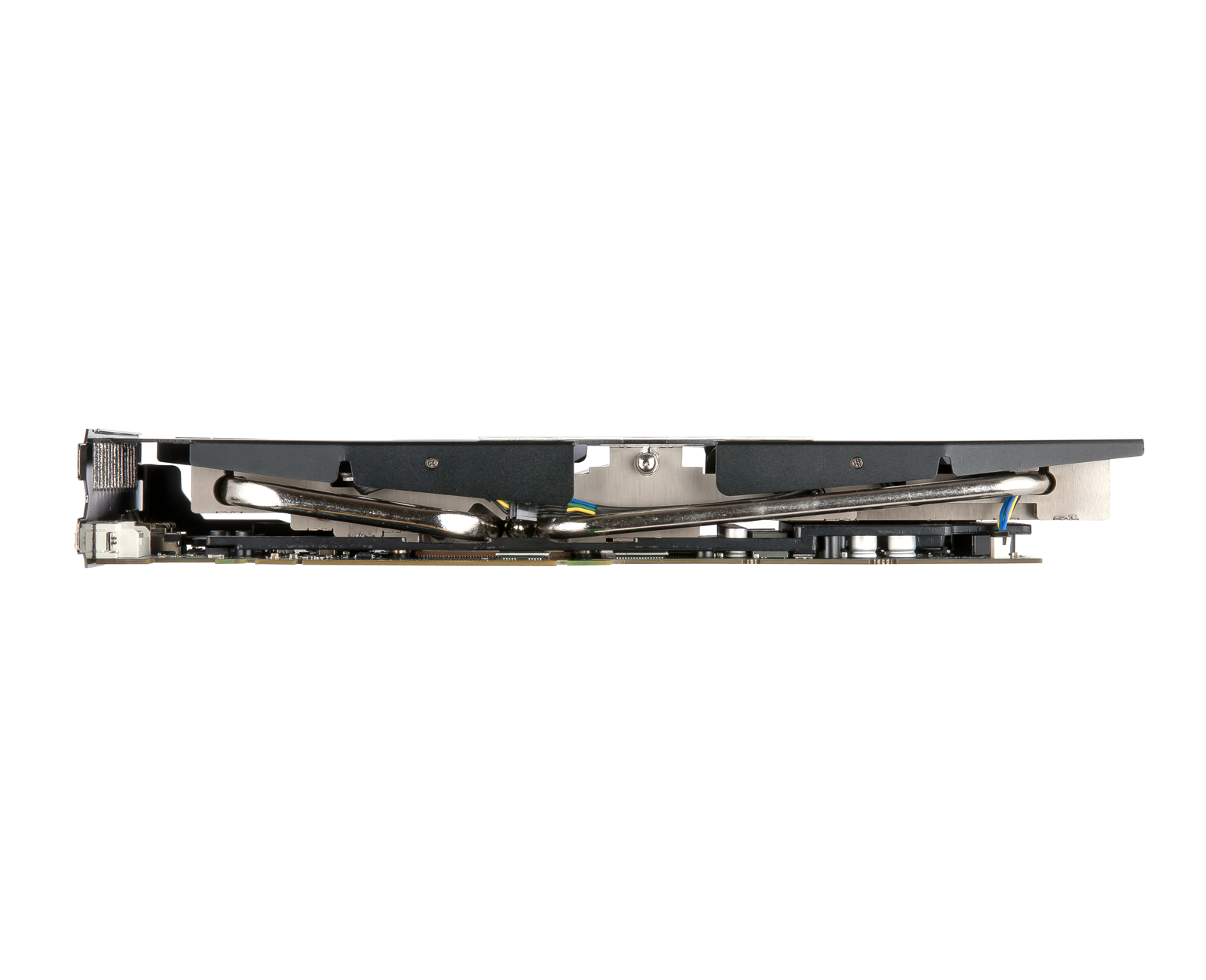

  • 0140_08_1600[2].jpg

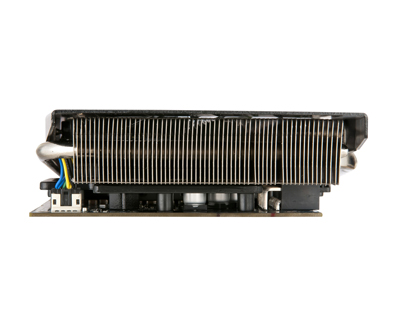

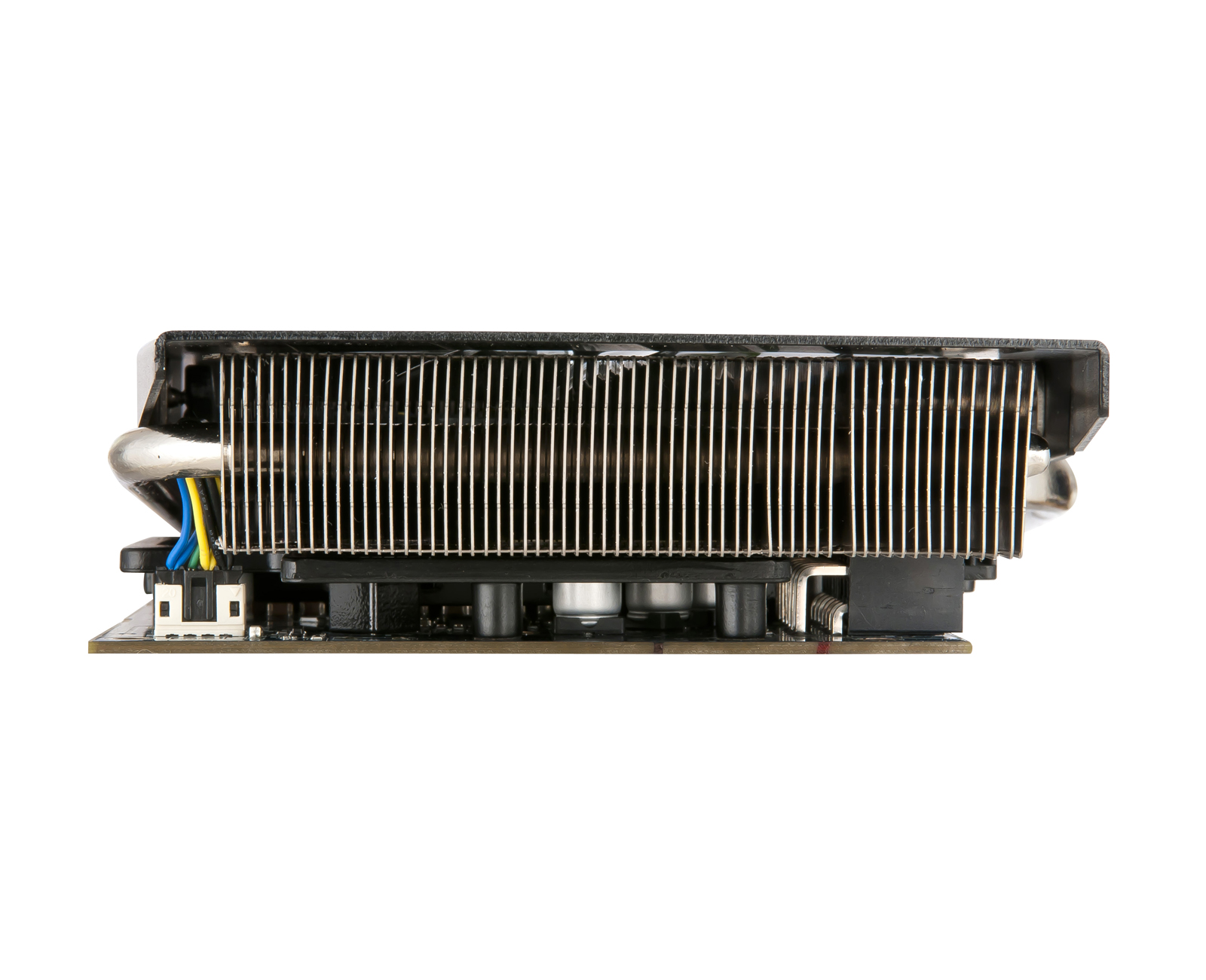

  • 0140_10_1600[2].jpg

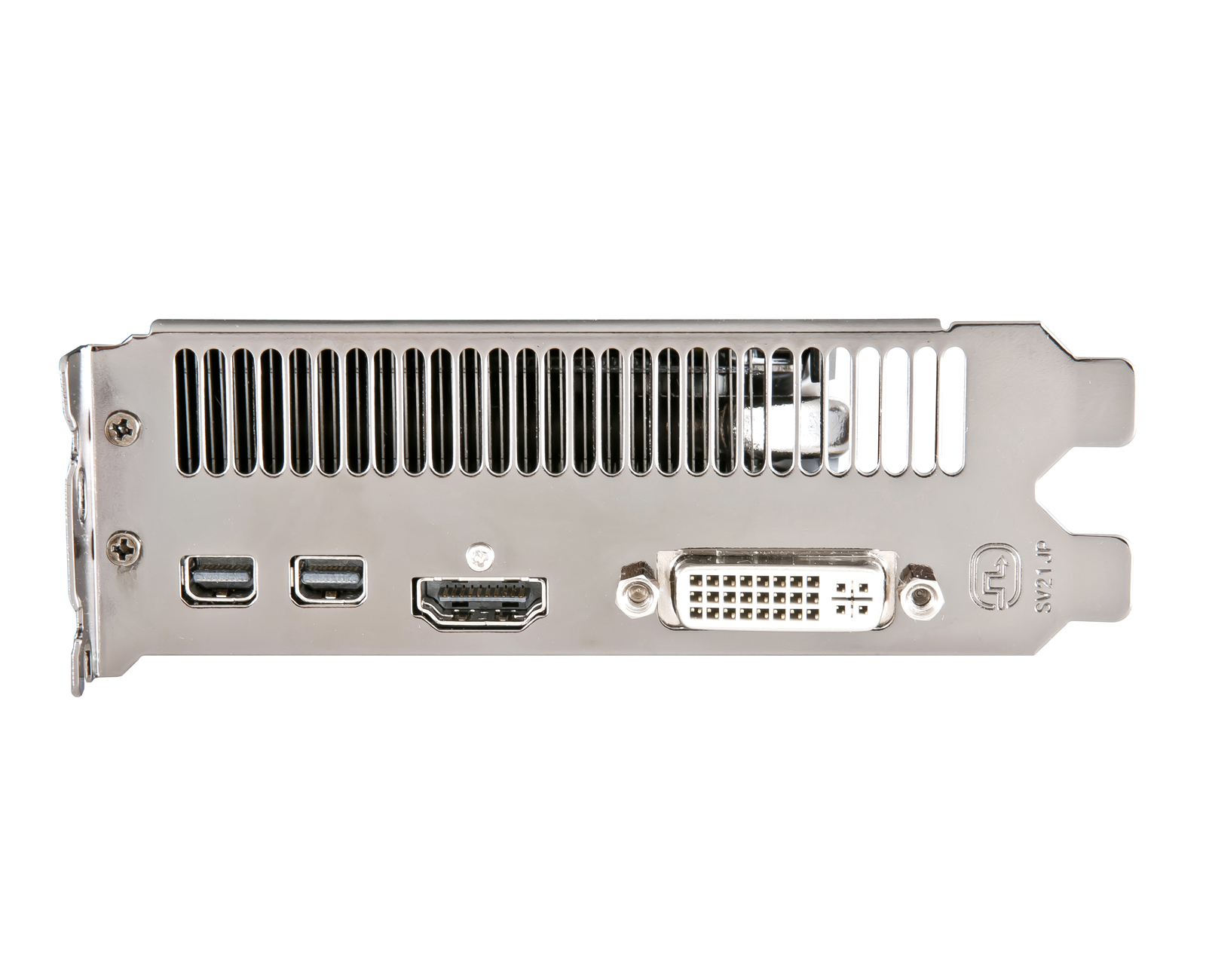

  • 0140_09_1600[1].jpg
  • H797QMC3G2M_3D_BOX_1600.jpg
产品编号 H797QMC3G2M
EAN 编码 4895139008029
散热器 IceQ X²
GPU 7970
芯片时脉 1000 (Boost Clock 1050) MHz
记忆体 时脉 6000 MHz
记忆体 3072 MB
记忆体类别 GDDR5
记忆体介面 384 bit
介面 PCI Express 3.0 x16
显卡大小 31.1 x 15 x 4.2 cm
包装盒大小 39 x 22 x 11.3 cm
产品重量(连包装盒) 1.72 kg
Availability

  • iPower
  • Windows 7 Compatibility
  • AMD Radeon Graphics
  • AMD Vision Technology
  • AMD HD3D Technology
  • AMD Eyefinity Technology
  • DirectX 11
  • IceQ X²
  • PCI Express 3.0
  • OpenGL 4.2
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 5
  • Gaming
  • Mini DisplayPort
  • Native HDMI
  • DVI
  • Retail Pack

HIS 7970 冰立方 GHz Edition引进 iPower提升电压, ,使超频更多,另有更快的Boost Clock, 更冷更靜的冰立方, iTurbo及安全設計。

先进的iPower设计,备有更多的电源接口及动态相位,让超频更高,更简单!

显卡的7970 GHz Edition核心,拥有最新的Boost Clock技术,核心频率及Boost Clock频率達到1GHz及1.05GHz为最吃资源的游戏及程式提供更高的频率,更强大的性能!

撘配IceQ X²冰立方散热是其中一款最安静的散热器。独特先进的设计,除了比公板冷,并提供超级安静的环境,在浏览网页丶照片丶QQ丶查看电邮或观看电影噪音少於28分贝。

随卡附有HIS最新的超频软件 - iTurbo。用家可以自行调较显卡速度丶温度和电压等,一印尽在玩家控制中!

显卡并使用了HIS安全设计,强化显卡,使其更持久耐用。特制的金属骨架使显卡更坚固丶更长寿。

配备AMD最新技术,例如GCN丶PowerTune with Boost电源管理技术等等,在运算效能丶游戏和使用功耗方面都有革命性的进步!

iPower: 电压更高, 超频更多!

iPower设计大大加强了显卡的电压承载能力,让超频能力推到另一高峰!



  HIS 7970 冰立方 GHz Edition AMD 7970 公板
电源接口 8+8 6+8
动态相位 6+1+1=8 5+1+1=7





Boost Clock 更快!

显卡拥有最新的Boost Clock技术,为最吃资源的游戏及程式提供更高的频率,更强大的性能!



  HIS 7970 冰立方 GHz Edition AMD 7970 公板
核心频率 1000 MHz 925 MHz
Boost Clock频率 1050 MHz 不适用
显存频率 6000 MHz 5500 MHz



IceQ X² 冰立方  –  更冷、更静

更冷
显卡的IceQ X²冰立方散热器, 超凡的散热性能让显卡比公板冷17度。

更静
IceQ X²冰立方上其中一款最安靜的散熱器。独特先进的设计,比公版散热器安静15分贝。散热器提供超级安静的环境,在浏览网页丶照片丶QQ、查看电邮或观看电影噪音少於28分贝

风扇设计
特大的双 8.9 cm风扇能抽取大量冷气,直接冷却核心。风扇拥有50,000小时特强寿命,加倍耐用。

特别设计的风扇扇叶提供更宽阔的散热范围,加强冷却效能!

三根6mm 及兩根 8mm的 超宽铜热管从核心区域带走热空气,散热效果显着!

特大的40x47.5mm铜散热器,扩大散热范围,效果超卓。

显卡另有显存及Mosfet散热器,加强在这些部分的散热。

显卡的风扇及ASIC温度可自行监控,方便自行在iTurbo或其它软体调较温度及风速。

安全设计: 更安全丶更耐用!

双Bios
拥有双Bios,确保显卡顺利运行。若预设Bios出现状况,用家可随寺切换至第二Bios。

提高稳定度
HIS显卡做功出色,达到最高安全标准。HIS显卡配备先进的SSC固态电感丶全固态电容,可提升稳定度和延长显卡的寿命。加上其他高素质元件,应付狂热游戏玩家的需求绰绰有馀!

金属骨架
PCB长时间悬挂在主板上,容易扭曲变形,出现细小裂缝,导致运作不良。HIS特制的金属骨架,大大强化PCB,防止变形,使用家可以用HIS显卡日以继夜的疯狂游戏!

超频元件

HIS显卡采用先进的多相动态相位控制PWM IC,配合数字电源设计,2盎司铜层等,充份运用显卡性能,令显卡可有更大的承载和超频能力,让超频用家发挥到极致!

支持交火

显卡备有2个交火接口,准备用家进行最多4相交火,让性能倍升。

新技术,新感受

GCN架构

配备AMD的GCN架构,显卡在运算效能快4.5倍丶DirectX® 11.1游戏的曲面细分快2.5倍丶使用功耗则低95%!

程式更快更顺畅!

显卡带给用家优质的图像享受,延伸到各种不同的程式,包括加强图像软体的处理能力和运算,加快档案压缩,加快媒体和式转换等等!
• Adobe Photoshop CS6
• Corel Winzip 16.5
• Musemage
• Handbrake
• MotionDSP Vreveal
• GIMP
• Cyberlink Power Director
• ArcSoft Media Converter

支持PCI-e 3.0

支持最新PCI Express 3.0 x16总线接口,提供比上一代PCI Express 2.x多一倍的带宽,只要配合相关系统,便可全面倍升显卡性能,感受极致的性能

更低功耗,更高性能!

显卡全新的设计及体系结构使显卡能更有效地运算,全方位的提高帧率,同时替用家节省电费。此外,先进的AMD PowerPlay™ 及 AMD PowerTune 电源管理技术,能将显卡的功耗控制在用家想达到的功耗范围内,确保帧率的同时减少耗电,达到节能丶节电,省钱的效果!

画质更高, 享受更好

显卡的最高分辨率为4096 x 2160可支持30” LCD屏幕及80”特大电视屏幕,令您的计算器摇身一变成为超级多媒体中心。

享受高清之美
显卡支持双流高清(1080p)视频播放,呈现1920×1080像素的高清影像,观看丶细听丶感受高清带给您完美无暇的画质!



享受受版权保护电影
支持HDCP,用家可播放高带宽数码内容保护的影音,包括DVD电影。



支持四倍高清
四倍高清在市场上尚未普及,但显卡却准备就绪。显卡全面支持3GHz HDMI 1.4a 及DisplayPort 1.2 HBR2,让用家随时可应付四倍高清的需要。



看得更多,赢得更多!
显卡可让计算器成为狂热游戏玩家的最佳武器,令玩家以更完美的图像效果,体验最新的三维立体游戏!

连接多台显示器,获得更多画面! AMD宽域技术“2.0”可同时支持4台独立显示器的输出,比上一代拥有更多的视频叠加模式丶更具弹性的边框补偿等等,可实现广阔的桌面工作空间和最身临其境的视觉环境,使您获得极致全景计算体验。这不公平的优势,助您在残酷的游戏世界内,轻松战胜对手。

画面更多,工作更佳

有没有想让一台显示器专门负责电邮,同时间另一台在浏览网页? 显卡备有两个Mini-Display接口,让你轻易扩大画面,连接两台包括苹果27”LED Cinema Displays在内的显示器。另外,显卡的双连接 DVI接口让你连接30”的DVI显示器,最高支持2560X1600的分辨率。用家更可以使用显卡的HDMI 1.4a接口连接80”大电视,享受分辨率4096X3112的特大画面。

声道更多,视像会议更佳
现今大多数的显卡核心只支持单声道。这张显卡却拥有数字多点音频,支持同时输出多个声道,提供用家高性价比的选择,进行多屏,多声道视像会议。

显卡提高用家的工作效率,是需要多屏工作或多屏视像会议的用家之理想选择,将用家的计算器成为多屏工作伙伴!

免责声明:

以上数据是根据动态相位规格推算所得。实际电压输出在不同情况可能会有差异。

以上数据为HIS测试所得,测试平台:
• Motherboard Chipset: AMD 890FX
• System Memory Size: DDR3 4G
• CPU Type And Speed: Athlon II X4 635 2.9GHz AM3
• Operation System: Windows 7 64bits
• Background Resolution: 1024x768x32bit
• Background Rresh Rate: 75Hz
不同平台得出数字可能会有差异。



产品名称 HIS 7970 IceQ X² GHz Edition 3GB GDDR5 PCI-E DVI/HDMI/2xMini DP
核心系列 Radeon HD 7970 PCIe 系列
核心型号  RadeonTM HD 7970 核心
Manu Process (Micron) 28nm
显存容量 (MB) 3072
显存类型 GDDR5
核心频率 (MHz) 1000 (Boost Clock 1050) MHz
显存频率 (Gbps) 6Gbps
显存位宽 (bit) 384bit
电源供应 500 Watt或以上
最大分辨率 4096x2160 per display (DisplayPort 1.2)
2560x1600 per display (Dual-link DVI)
2048x1536 per display (VGA)
接口类型 PCI Express 3.0 x16
Mini DisplayPort接口 2个
HDMI接口 1个
DVI接口 1个
VGA接口
