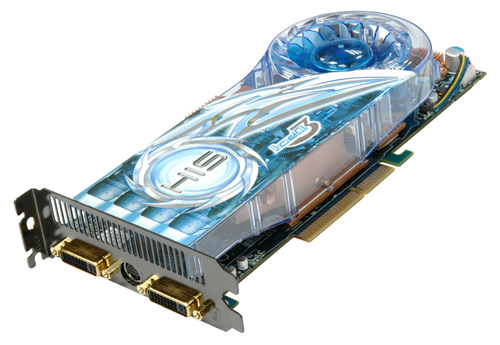

HIS HD 3850 IceQ 3 Turbo 512MB (256bit) GDDR3 AGP
  • HD3850_IceQ3_AGP_500
  • HD3850_IceQ3_AGP_3dbox_250
제품 코드 H385Q512ANP
EAN 코드 4895139000535
쿨러 IceQ 3
GPU 3850
코어 클럭 720 MHz
메모리 클럭 1820 MHz
메모리 크기 512 MB
메모리 종류 GDDR3
메모리 인터페이스 256 bit
인터페이스 AGP 8X/ 4X
카드 크기 24.1 X 12.5 X 4.1 cm
박스 크기 34.5 x 21.5 x 5.5 cm
박스 무게 1.45 kg
Availability Available in US Only

  • ATI Premium Graphics™
  • ATI CrossfireX™
  • DirectX 10.1
  • IceQ 3
  • UV Sensitive
  • PCI Express 2.0
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Gaming
  • Dual DVI
  • TV-Out
  • Retail Pack
  • Powered by Radeon® HD 3800 GPU
  • HIS IceQ 3 Cooling Technology
  • 512MB(256bit) GDDR3 memory
  • Superscalar unified shader architecture
  • 320 stream processing units
  • 256-bit memory interface
  • DirectX® 10.1 / Shader Model 4.1 support
CHIPSET FEATURES
  • Superscalar unified shader architecture
  • 320 stream processing units
  • 256-bit memory interface
  • DirectX® 10.1 / Shader Model 4.1 support
  • Use up to four GPUs with an AMD 790FX based motherboard
  • High-speed 128-bit HDR (High Dynamic Range) rendering
  • Up to 24x Custom Filter Anti-Aliasing
  • 55nm process technology
  • ATI AvivoTM HD video and display technology
  • Built-in HDMI and 5.1 surround audio
  • Support for the ATI RadeonTM DVI to HDMI adapter
  • Unified Video Decoder (UVD) for Blu-rayTM and HD DVD
  • Dynamic geometry acceleration
  • Game physics processing capability
HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support
ACCESSORIES
SOFTWARE BUNDLED
  • Driver CD
CABLE/ADAPTOR BUNDLED
  • DVI to HDMI adapter
  • DVI to VGA adapter
  • S-Video to Composite Adapter
  • HIS Multi-purpose Screw Driver Pen (Screw Driver, LED Light, Spirit Level)
Model Name
HIS HD 3850 IceQ 3 Turbo (Full HD 1080p) HDMI 512MB (256bit) GDDR3 Dual DL-DVI & TV (HDCP) AGP
Chipset
Radeon HD 3800 AGP Series
ASIC
Radeon™ HD 3850 GPU
Pixel Pipelines
320 stream processing units* (Unified)
Vertex Engines
320 stream processing units* (Unified)
Manu. Process (Micron)
55nm
Transistor

Fill Rate

Memory Size (MB)
512MB
Memory Type
GDDR3
RAMDAC (MHz)
400
Engine CLK (MHz)
720MHz
Memory CLK (MHz)
1820MHz
Memory Interface (bit)
256bit
Memory Bandwidth
Max. Resolution
Two x 2560*1600 (Dual dual-link)
Bus Interface
AGP 8X/ 4X
VGA
No
2nd VGA
No
DVI
Yes
2nd DVI
Yes
TV-out
No
HDTV (YPrPb component output)
No
Video-in
No
TV Tuner
No
FM Tuner
No

HIS IceQ 3 Cooling Technology

HIS IceQ 3 is the 3rd generation of IceQ cooling technology which is endorsed by worldwide media. HIS IceQ 3 innovative design doubles the strength to its predecessor. It ensures lower operating environment for GPU and memory, extends headroom for overclocking and provides longer service life. HIS IceQ 3 can cool down the core temperature dramatically; lower than original cooler. Heat transfers rapidly out of GPU and reduces temperature faster. Also it is sensitive to ultra violate light with special UV effect.

HD Concept output with gold plated

HIS has applied the “HD” concept design on its new models. Features include: high-quality gold-plated ports, black panel plate which sync. with the “High-definition” concept of the new Radeon™ HD Series.

HD Gaming in the Next Generation

Advance to the next generation of gaming with incredible performance, life-like graphics and support for the latest Microsoft® DirectX® 10.1. With 320 stream processors, you’re ready for the most demanding titles.

ATI Avivo™ HD Technology

ATI Radeon™ HD 3800 Series GPUs feature ATI Avivo™ HD technology with advanced audio, video processing, display and connectivity capabilities for high definition entertainment solutions. ATI Avivo™ HD technology includes fully integrated HD audio capabilities and supports playback of multi-channel (5.1) audio streams. When combined with the integrated HDCP copy protection, ATI Avivo HD enables a one-cable HDMI™ connectivity solution to high definition home theaters.

ATI Unified Video Decoder Technology (UVD)

Connect your PC to your home theater and start watching HD content from your computer using new ATI Radeon™ HD 3800 series graphics cards. The ATI Radeon™ HD 3800 Series is designed to decode and playback Blu-ray™ and HD DVD formats using dedicated hardware within the GPU. This technology, known as UVD or Unified Video Decoding, is part of ATI Avivo™ HD, the new collection of technologies that are designed to improve the visual and connectivity capabilities of ATI Radeon™ HD 3800 Series GPUs

HDMI Video and Audio

The ATI Radeon™ HD 3800 Series GPU further enhances the HD entertainment experience by making it easy to make the connection to a big- screen or home theater system. With built-in 5.1 surround audio (AC3) pass-through capabilities, the new GPUs and graphics cards support a single HDMI connection direct to a compatible TV or receiver. This single cable carries both the HD video and 5.1 surround audio for a clean, high definition connection. Some graphics cards will have an HDMI connector built in, while others will use a special ATI Radeon DVI-I to HDMI adapter. These options mean greater choice and flexibility for consumers when connecting to PC monitors or home theaters for maximum enjoyment of full HD 1080p content.

Microsoft® DirectX® 10.1 support

ATI Radeon™ HD 3800 series GPUs offer full support for the new DirectX® 10 and DirectX 10.1 API (Application Program Interface) from Microsoft®; ready to meet the demanding needs of new, next generation games. DirectX® 10 is the first totally new DirectX® in the last 4 years and brings important graphics innovations that can be used by game developers for the next generation of games. DirectX® 10 introduces crisp, never-before-seen detail-rich images, visual effects and game dynamics capable of accurately simulating the real world. No matter which ATI Radeon™ HD 3800 Series GPU you choose, you can be assured that games will look as good as the developer intended!

Microsoft® Windows Vista®

ATI Radeon™ HD 3800 series GPUs provide total support for the Microsoft® Windows Vista® operating system and improve the performance of the Windows Aero™ graphical interface. You will be amazed by the dazzling 3D visual effects and have peace of mind that the ATI Catalyst™ software and drivers are designed and thoroughly tested to ensure full compatibility and stability to keep you up and running. All these new technologies and features make the ATI Radeon™ HD 3800 series of GPUs the ideal solution for ultimate HD gaming and HD video entertainment with the Windows Vista OS.

December 28th, 2009 at 07:43 am By Gold Leader

Well I have to admit if you want to the best AGP card on the market? The HIS HD 3850 ICEQ3 TurboX AGP is the way to go, here's my card which I recieved last Saturday :)

http://www.3dfx.ch/gallery/d/39461-1/HIS+HD+3850+ICEQ3+TurboX+AGP+_amp_+Sapphire+HD+3850+AGP+top.JPG

http://www.3dfx.ch/gallery/d/39455-1/HIS+HD+3850+ICEQ3+TurboX+AGP+_amp_+Sapphire+HD+3850+AGP+rear.JPG

http://www.3dfx.ch/gallery/d/39458-1/HIS+HD+3850+ICEQ3+TurboX+AGP+_amp_+Sapphire+HD+3850+AGP+top+angled.JPG

As you can see they are very different from each other :cool:
The PCB of this HIS is a little narrower and it's Capacitors are all sealed as well, it also seems it's VRM's are from the brand Delta, these come from Zierikzee, Soulth Holland, a short 40KM drive south from my home!

This HIS HD 3850 ICEQ3 TurboX AGP also has a nick name which many also call itas the HD 3870 AGP, this is because it matches HD 3870 PCI-E performance in almost every game out there.

So here it is in my setup from 2004 and it's still rock'n too :)

Dual OpteronDP 248 CG, 2x 2205Mhz, 2x 1MB L2
MSI MS-9130 K8T Master2-FAR VIA K8T800 Chipset
2x 1024MB PC-3200 CL2,5 ECC Reg Kingston Value Ram
HIS Radeon HD 3850 ICEQ3 TurboX AGP 512MB 256Bit GDDR3 Rev.A1 0806 [year 2008, week 06]
3dfx Voodoo5 5500 PCI Macintosh 64MB 128Bit SDR Rev.A1 2900 [week 29, year 2000] + PC Bios 1.18_LCD
ASUS NEC quad ported USB 2.0 PCI card
Auzentech X-Fi Prelude 7.1
1x Western Digital Caviar SE1 250GB Ultra ATA 133 Main HDD
1x Western Digital Caviar RE2 320GB SATA II 300 @ SATA I 150 Slave HDD
Antec True Power P550 EPS12V 550 Watt PSU + External Molex.
Lian Li PC-60 PLuS! MKII

WinXP Pro USA + SP3
ATi Catalyst 9.11 WHQL for HD 3850 ICEQ3 TurboX AGP
SFFT Alpha 41 Modified by "ps47" for 5500 PCI Mac

http://www.3dfx.ch/gallery/d/39431-2/Firefox+SMP+2004+the+final+layout.JPG

http://www.3dfx.ch/gallery/d/39440-2/HD+3850+ICEQ3+TurboX+AGP+_amp_+5500+PCI+Mac.JPG

http://www.3dfx.ch/gallery/d/39434-2/Firefox_s+cards+rear+up.JPG

I use this system to play games like CoD4 MW, Crysis, UT GOTYE 1999, Descent 3, DXX-Rebirth, C&C 3 series, RA3 series and some others, it supports all 3 different API's 3dfx Glide, SGI OpenGL and Microsoft Direct3D.

It also works fine in Vista Business x64 + SP2 without any issues, however I am using WinXP Pro + SP3 on that setup, better driver support for the Voodoo5 and since most games are DX9 anyways or OpenGL XP + SP3 is just fine, though I am quate sure Win7 should work, since it's more like a Win Vista workaround heh.

September 3th, 2009 at 12:53 am By Sebastian Schalow

One of the best solution for AGP Ports, plays much to date games in up to 25-60 FPS.

March 21th, 2009 at 06:37 am By Josef

Waiting for price drop to make final upgrade to my AGP Core 2 DUO system that is screaming for this Graphics Card upgrade..I can't wait...Using a XFX 7600GT right now that won't compare to this baby...

March 7th, 2009 at 12:30 am By Matthias

I have this card since 1 year and i love it.
It´s the best for agp.

Matthias

February 28th, 2009 at 08:21 am By Tim

I am comsidering the purchase of this card. Hands down beats the rest. I can't wait to write a review on it!

February 25th, 2009 at 08:38 am By Michi

Great Videocard, best one for AGP Systems!
Also good Cooling, almost silent =)
CoD4 has about 35-50 fps with 1920x1200 highest
settings without AA AF !
Only Game which isnt running nice is Crysis ;-)

February 13th, 2009 at 06:56 pm By S.Vagianas

This is the best AGP card i have ever see...
